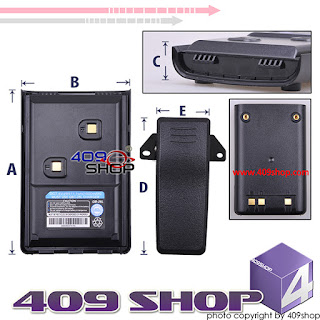

7.4V 1500MAH LI-ION BATTERY FOR QYT UV-9A UU

圖片
http://www.409shop.com/409shop_product.php?id7.4V 1500MAH LI-ION BATTERY FOR QYT UV-9A UU
Specifications:
Type:Li-ion
Voltage:7.4V
Capacity:1500mAh
Size:Battery: (A)7.9 CM x (B)5.3 CM x (C)1.6 CM
        Belt Clip:(D)6.7 CM x (E)2.6 CM
Weight:88g Fit For:
QYT UV9A UU
PACKAGE CONTAIN:
1 x 7.4V 1500MAH LI-ION BATTERY FOR QYT UV9A UU
1 x Belt Clip
KI Photo will have chromatic aberration compared with the product=109934

QYT D68 UHF 400-480MHz Digital Mobile Radio (DMR)

圖片
http://www.409shop.com/409shop_product.php?id=123347Specifications:Main Features: High/Low power selective Single call, Group call, All call function Voice prompt Monitor 32 channels Low power alarm SQL VOX function Wide/Narrow bandwidth selectable Lone work Channel scanning/Priority scanning End-tone elimination Emergency alarm Programmable multifunction key TOT Voice encryption Talk around Digital and Analog combined
Specification:
Item number D68 General Frequency Range 400-480MHz Channel Spacing 12.5Khz, 25Khz Operating Temperature -20°C+50°C Channel No. 32 Antenna Impedance 50Ω Operating Voltage 7.4 V Antenna connector SMA-F Audio Output Power ≤1000mW@16Ω Dimension(W x H x D) 114x60x33mm Battery  1600mAh Li-ion  Weight(With Standard Li-ion battery) 285g Receiver Sensitivity ≤-177dBm (Ber≤5%) Co-Channel rejection ≥-12dB Adjacent Channel Selectivity ≥60dB Spurious Response rejection ≥70dB Intermodulation ≥65Db(ETSI) Blocking ≥85dB Conducted spurious emission Antenna 9Khz-1Ghz  ≤-57dBm 1Ghz-12.75Ghz  ≤-47dBm Transmitter Output Power

QYT KT8900 136-174/240-260MHZ Mini Mobile Radio (Red Special)

圖片
http://www.409shop.com/409shop_product.php?id=123826

KT8900R-260 QYT KT8900 136-174/240-260MHz Mini Mobile Radio (Red Special)
Item number KT8900R General Frequency Range VHF:136-174MHz  UHF:240-260MHz Number of Channel  200 Channel Spacing 25KHz 20K 12.5 Phase lock step 5KHz、6.25 KHz、10 KHz、12.5 KHz、15 KHz、25 KHz Working Voltage 13.8V DC±15% Squelch way CTCSS/DCS/5Tone/2Tone/DTMF Frequency Stability ±2.5ppm Operating Temperature -20~+60 Dimension(W x H x D) 98(W) x 35(H) x 118(D)mm Weight 408g
Receiver
Broadband Narrow band Sensitivity ≤ 0.25μV ≤ 0.35μV Channel choice ≥70dB ≥60dB Intermodulation ≥65dB ≥60dB Spurious Rejection ≥70dB ≥70dB Audio response +1~ -3dB(0.3~3KHz) +1~ -3dB(0.3~2.55KHz) Signal to noise ratio ≥45dB ≥40dB Audio distortion ≤5% Audio output power ≥2W@10%
Transmitter
Broadband Narrow band Output power 25W/20W(VHF/UHF) Modulation Mode 16KΦF3E 11KΦF3E Channel Power ≥70dB ≥60B Signal to noise ratio ≥40dB ≥36dB Parasitic harmonic ≥60dB ≥60dB Audio response +1~ -3dB(0.3~3KHz) +1~ …

QYT KTUV980 40W 136-174/400-480MHz Mobile Transceiver (Red Special)

圖片
http://www.409shop.com/409shop_product.php?id=123524QYT KTUV980 40W 136-174/400-480MHz Mobile Transceiver (Red Special)

※Software do not support Window 7
※No Switch of low power output (It can use High Power to TX only) Specifications: Model: KT-UV980(Red Special)This product has the function of the new development menu Personalized design operation,
male it easy for you to use Exquisite volume and reasonable price will meet you requirements.Function 1. Dual Band Frequency waiting 2. Step Frequency 5/6.25/10/12.5/25KHz 3. 10 Level Squelch step 4. High Transmitted Power 5. Voice Encryption 6. Time out Timer 7. Launch end early warm 8. Wide/Narrow switchable 9. Auto light 10. Voice to switch 11. Receiver retuned/ Receiver analog retuned 12. Launch digital retuned/ Launch simulation retuned 13. Lateral sound switch 14. Busy channel lock 15. Add Scan Channel 16. Priority Scan/Channel 17. Scan back way 18. Optional signaling 19. Horn loudspeaker 20. PPT launch 21. Sending additional 22. Issue informational 23. Alarm …

QYT KT-UV980 Red 136-174/240-260MHz for Thailand Car transceiver

圖片
http://www.409shop.com/409shop_product.php?id=123647

KT-UV980R QYT KT-UV980 Red 136-174/240-260MHz Thailand Car transceiver Specifications: Model: KT-UV980 Red 136-174/240-260MHz Thailand Car transceiverThis product has the function of the new development menu Personalized design operation,
male it easy for you to use Exquisite volume and reasonable price will meet you requirements.Function 1. Dual Band Frequency waiting 2. Step Frequency 5/6.25/10/12.5/25KHz 3. 10 Level Squelch step 4. High/Low Transmitted Power 5. Voice Encryption 6. Time out Timer 7. Launch end early warm 8. Wide/Narrow switchable 9. Auto light 10. Voice to switch 11. Receiver retuned/ Receiver analog retuned 12. Launch digital retuned/ Launch simulation retuned 13. Lateral sound switch 14. Busy channel lock 15. Add Scan Channel 16. Priority Scan/Channel 17. Scan back way 18. Optional signaling 19. Horn loudspeaker 20. PPT launch 21. Sending additional 22. Issue informational 23. Alarm Mode 24. Alarm Channel 25. Ring time 26. Channel name edit 2…

KT8900 LA4225 AUDIO IC CHIP

圖片

QYT KT-780PLUS 100W VHF136-174MHz Single Band Mobile Radio

圖片
http://www.409shop.com/409shop_product.php?id=124299 100W High power QYT KT-780 Plus VHF136-174MHz Single Band Mobile Radio with Colorful Display
DescriptionQYT KT-780PLUS 100W Mobile Radio Quad Standby Colorful Screen Ham Car Mobile TransceiverFeatures: Single-Band, Quad-Standby Frequency Range: VHF 136~174MHz  Compact and rigid car radio with colorful screen5Tone 2Tone ANI DTMF functionRemote Stun, Remote Kill, Remote ReviveHigh power output 100WExternal speaker/PTT
General: Frequency Range:VHF:136-174MHz or UHF:400-480MHzNumber of Channel:200 3.Channel Spacing:25KHz 20K 12.5K Phase lock step: 2.5KHz, 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHzWorking Voltage:13.8V DC±15%Squelch way: CTCSS/DCS/5Tone/2Tone/DTMFFrequency Stability :±2.5ppmOperating Temperature:-20-+60C
Specification: ReceiverBroadbandWide bandNarrow bandSensitivity< 0.25V< 0.35VChannel choice>70dB>60dBIntermodulation>65dB>60dBSpurious Rejection>70dB>70dBAudio response+1 – -3dB(0.3-3KHz)+1 – -3dB(…

QYT KT-8900R 136-174/240-260/400-480MHz Mini Mobile Radio Transceiver

圖片
http://www.409shop.com/409shop_product.php?id=123923Specifications:

Item numberKT8900RGeneralFrequency RangeVHF:136-174MHz  240-260MHz UHF:400-480MHzNumber of Channel 200Channel Spacing25KHz 20K 12.5Phase lock step5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHzWorking Voltage13.8V DC±15%Squelch wayCTCSS/DCS/5Tone/2Tone/DTMFFrequency Stability±2.5ppmOperating Temperature-20~+60Dimension(W x H x D)98(W) x 35(H) x 118(D)mmWeight408gReceiverBroadbandNarrow bandSensitivity≤ 0.25μV≤ 0.35μVChannel choice≥70dB≥60dBIntermodulation≥65dB≥60dBSpurious Rejection≥70dB≥70dBAudio response+1~ -3dB(0.3~3KHz)+1~ -3dB(0.3~2.55KHz)Signal to noise ratio≥45dB≥40dBAudio distortion≤5%Audio output power≥2W@10%TransmitterBroadbandNarrow bandOutput power25W/20W(VHF/UHF)Modulation Mode16KΦF3E11KΦF3EChannel Power≥70dB≥60BSignal to noise ratio≥40dB≥36dBParasitic harmonic≥60dB≥60dBAudio response

QYT KT8900 (Camouflage) 136-174/400-480MHz Mini Mobile Radio Transceiver

圖片
http://www.409shop.com/409shop_product.php?id=124013QYT KT8900 (Camouflage) 136-174/400-480MHz Mini Mobile Radio Transceiver
Item number KT8900 General Frequency Range VHF:136-174MHz  UHF:400-480MHz Number of Channel  200 Channel Spacing 25KHz 20K 12.5 Phase lock step 5KHz、6.25 KHz、10 KHz、12.5 KHz、15 KHz、25 KHz Working Voltage 13.8V DC±15% Squelch way CTCSS/DCS/5Tone/2Tone/DTMF Frequency Stability ±2.5ppm Operating Temperature -20~+60 Dimension(W x H x D) 98(W) x 35(H) x 118(D)mm Weight 408g
Receiver
Broadband Narrow band Sensitivity ≤ 0.25μV ≤ 0.35μV Channel choice ≥70dB ≥60dB Intermodulation ≥65dB ≥60dB Spurious Rejection ≥70dB ≥70dB Audio response +1~ -3dB(0.3~3KHz) +1~ -3dB(0.3~2.55KHz) Signal to noise ratio ≥45dB ≥40dB Audio distortion ≤5% Audio output power ≥2W@10%
Transmitter
Broadband Narrow band Output power 25W/20W(VHF/UHF) Modulation Mode 16KΦF3E 11KΦF3E Channel Power ≥70dB ≥60B Signal to noise ratio ≥40dB ≥36dB Parasitic harmonic ≥60dB ≥60dB Audio response +1~ -3dB(0.3~3KHz)

QYT KT-8900RE 136-174/220-260/350-390/400-480MHz Mini Mobile Transceiver

圖片
http://www.409shop.com/409shop_product.php?id=124088QYT KT-8900RE 4 BAND 136-174/220-260/350-390/400-480MHz Mini Mobile Transceiver Specifications:  Item numberKT8900REGeneral Frequency Range VHF:136-174MHz  /220-260MHz  UHF:350-390MHz/ 400-480MHz  Number of Channel 200 Channel Spacing25KHz 20K 12.5 Phase lock step5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz Working Voltage13.8V DC±15% Squelch wayCTCSS/DCS/5Tone/2Tone/DTMF Frequency Stability±2.5ppm Operating Temperature-20~+60 Dimension(W x H x D)98(W) x 35(H) x 118(D)mmWeight408gReceiverBroadbandNarrow bandSensitivity≤ 0.25μV≤ 0.35μVChannel choice≥70dB≥60dBIntermodulation≥65dB≥60dBSpurious Rejection≥70dB≥70dBAudio response+1~ -3dB(0.3~3KHz)+1~ -3dB(0.3~2.55KHz)Signal to noise ratio≥45dB≥40dBAudio distortion≤5%Audio output power≥2W@10%TransmitterBroadbandNarrow bandOutput power25W/20W(VHF/UHF)Modulation Mode16KΦF3E11KΦF3EChannel Power≥70dB≥60BSignal to noise ratio≥40dB≥36dB
