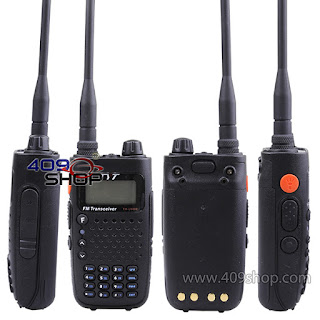

TYT THUV6R VHF 136-174MHZ /400-480MHZ AMATEUR TWO-WAY RADIO
THUV6R
TYT THUV6R VHF 136-174MHZ /400-480MHZ AMATEUR TWO-WAY RADIO
The TYT TH-UV6R is a mid size dual band radio, about the same size as the Baofeng UV5R, and features a built in high brightness LED flashlight, 2Tone / 5Tone DTMF encoding, and 8Group’s scrambler and repeater compatible frequency offsets and CTCSS PL tones.
This radio is well supported with accessories and can be programmed via computer using the optional programming cable.
■MSK
|
■2T/5T
|
■Programming protect
|
■ flashlight function
|
■Dual band dual display dual standby
|
■2x128 channels to store
|
■FM Radio receiver and 20 channels
|
■Channel spacing selectable(25/12.5kHz)
|
■Hand-sfree VOX function
|
■50CTCSS tones and 210 DCS codes
|
■Scan of frequencies with CTCSS/ DCS
|
■Low battery vocal indication
|
■SOS emergency function
|
■ Shift repeater function
|
■ANI function
|
■ DTMF& Remote kill/ stun function
|
■Talk-around function
|
■ Reverse frequency function
|
■ Voice Compander
|
■ 8 groups scrambler
|
Specifications:
Model
|
TYT TH-UV6R
|
Frequency stability
|
±2.5ppm
|
Modulation ( wide/narrow)
|
16KΦF3E/11KΦF3E
|
Max frequency deviation ( wide/narrow)
|
<=5KHz/<2.5KHz
|
Spurious radiation
|
<7uW
|
Pre-emphasis character
|
6 dB
|
Emission current
|
≤1.6A(5W)
|
CTCSS / DCS ( wide/narrow)
|
0.5±0.1kHz/0.4±0.1 kHz
|
Intermediation sensitivity
|
1-10mV
|
Intermediation distortion
|
<5%
|
RF Sensitivity
|
-122dBm(12dB SINAD)
|
Audio Power
|
1W
|
Audio Distortion
|
<5%
|
Blocking
|
≥85dB
|
Intermediation(wide/narrow)
|
≥60dB / ≥55dB
|
Features:
| |
Dual band
|
Dual Display / Dual Standby
|
Frequency Range
|
136-174Mhz* / 400-470Mhz* (Ham Band Only)
|
SQL
|
0-9 grades
|
Step
|
2.5k / 5k / 6.25k /…. / 25k
|
FM radio
|
25 stations storage
|
CTCSS/DCS
|
50CTCSS / 104DCS
|
Wide/Narrow Band(25kHz/12.5kHz)
|
√
|
Shortcut menu operation mode
|
√
|
Time-out Timer (TOT)
|
√
|
VOX function
|
1-8 grades VOX selectable
|
Voice companding
|
√
|
DTMF encoding and decoding
|
√
|
Backlight brightness setting
|
√
|
Scanning function
|
√
|
Keypad lock function
|
√
|
Signal strength indicator
|
√
|
LCD display
|
√
|
Battery voltage display function
|
√
|
Channel name display and editing functions
|
√
|
Busy lockout function
|
√
|
Wire clone function
|
√
|
Emergency alarm function
|
√
|
Low battery alarm
|
√
|
Power saving function
|
√
|
High/Low TX power selectable
|
√
|
Chinese and English voice prompt
|
√
|
PC software programmable
|
√
|
Monitor function
|
√
|
PTT&ANIID
| |
