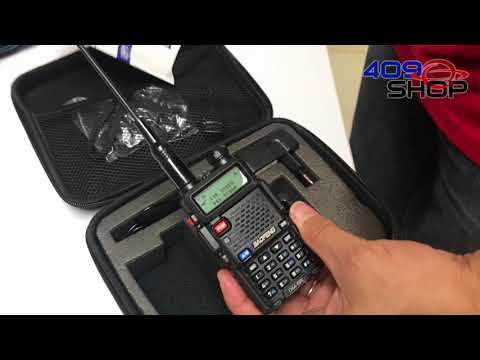

BaoFeng UV-5R Dual Band Two Way Radio (Black) Case

BaoFeng UV-5R Dual Band Two Way Radio (Black) + Case



Item No.: UV5R+Case https://www.409shop.com/409shop_product.php?id=124697

　

Introduction

BAOFENG UV-5R The transceiver is a micro-miniature multiband

FM transceiver with extensive receive frequency coverage,

providing local-area two-way amateur communications along with unmatched monitoring capability

Feature & Specification

VHF/ UHF DUAL-BAND TWO WAY RADIO

Frequency Range: 136-174 / 400-520MHz

Dual-Band Display, Dual Freq. Display, Dual-Standby

Output Power: 4 /1Watts

128 Channels

50 CTCSS and 104 CDCSS

Built-in VOX Function

1750Hz Brust Tone

FM Radio (65.0MHz-108.0MHz)

LED Flashlight

Large LCD Display

High/Low RF Power Switchable

25KHz/12.5KHz Switchable

Emergency Alert

Low Battery Alert

Battery Saver

Time-out Timer

Keypad Lock

Monitor Channel

Channel Step: 2.5/5/6.25/10/12.5/25KHz

ROGER SET

　

BAOFENG UV-5R Compare Products

■ Dual band, dual display, dual standby

■ A/B band independent operation

■ 128 groups channels storage

■ Shortcut menu operation mode

■ VFO & Memory channels scan

■ Emergency Alarm

■ Tri-color background light selectable

■ 0~9 grades VOX selectable

■ PTT & ANI ID

■ FM radio

■ Voice companding

■ 50 CTCSS/104 DCS

■ PC programmable

■ Wide/Narrow Band(25kHz/12.5kHz)

■ Transmitter time-out timer(TOT)

■ High/Low TX power selectable

■ Busy channel lock-out(BCLO)

　 　

Specifications:　

Item number UV-5R

General

Frequency Range 65-108MHz(FM Receive only)

136-174MHz and 400-520MHz (TX/RX)

Channel No. 128

Frequency Stability ±2.5ppm

Antenna High gain DualBand antenna

Antenna Impedance 50Ω

Operating Voltage DC 7.4V

Mode of operation Simple or semi-duplex

Dimension（W x H x D） 100 x 52 x 32 mm

Weight 250g（including battery, antenna）

Transmitter

Output power 4W / 1W (Max 5W)

Modulation Mode 16kΦF3E / 11kΦF3E

Maximum deviation ＜5kHz(Wide) / ＜2.5kHz(Narrow)

Spurious Radiation ＜7μW

Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis characteristics 6dB

Current ≤1.6A(5W)

CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity 8-12mv

Intermediation distortion ＜10%

　

Earpiece / mic type : Kenwood Plug type

Antenna : SMA -Female　



Package Contents

1 x UV-5R (VHF136-174Mhz UHF 400-520Mhz) ( No Original Paple BOX )

1 x 7.4V 1800mah Li-ion Battery Pack

1 x Antenna

1 x Belt Clip

1 x ENG Manual

1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)

1 x PTT Earpiece for free

1x Black Case
