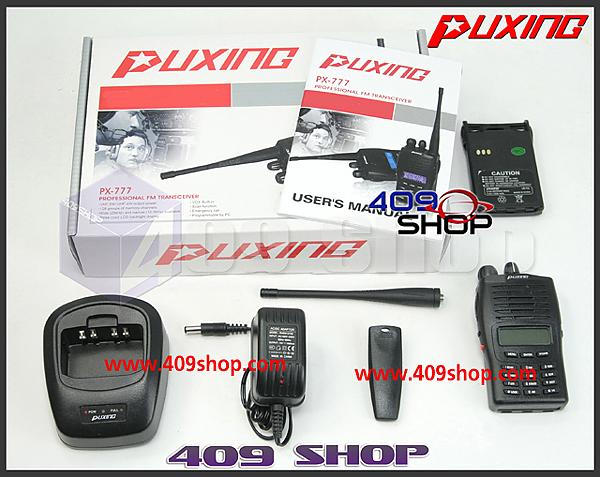

Puxing PX-777 UU 465-520Mhz UHF + Earpiece +battery
Puxing PX-777 UHF 465~520Mhz Transceiver+Earpiece+Battery
- 128 Groups of memory channels
- Built-in 50 Groups of CTCSS and 104 Groups of DCS
- Wide(25kHz) and Narrow(12.5kHz) available

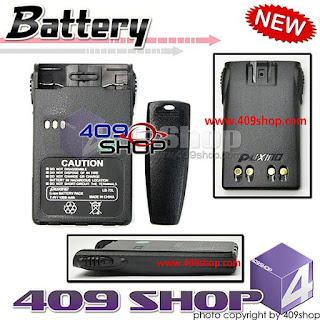

- Come with 1200mAh Li-ion battery
- Input Freq. By using keypad
- VOX built-in
- Scan function
- Three color LCD backlight display
- Emergency Alarm
- Programmable by PC
- Bell ring when receiving signal
- Priority Scan Function
- Adjust power Hi/Lo
- Switching between Channel/Freq.
- Adjust squelch level(0-9)
- Busy channel lockout
- Keypad lock
| General | |
| Frequency Range |
PX-777(U)465-520MHz
|
| Channels | 128 |
| Channel Steps | 5k,10k,6.25k,12.5k,25k |
| Power Supply | 7.2V 1200mah LI-ion |
| Operating Temperature | -20°C ~ +60°C |
| Communication Range | 3 ~6km |
| Dimension (H x W x D) | 100 x 55.5 x 31mm |
| Weight | 225g |
RX
Receiver
| |
| Sensitivity | <0.20µV |
| Selectivity | 65dB |
| Intermodulation Rejection | 60dB |
| AF Output | 500mW |
| Standby Current | 35mA |
| TX
Transmitter
| |
| Power Output | 4W |
| Modulation Type | F3E |
| Spurious Emission | < -65dB |
| Transmit Current | 1300mA/750mA |
| Max. Deviation | ±5kHz |
| Modulation Distortion | < 5% |
| Frequency Stability | ±2.5ppm |
This model without Scrambler & ANI code.
Free for Battery
