Puxing PX-777 VHF 136-174Mhz + earpiece +battery
http://www.409shop.com/409shop_product.php?id=105233
PX777 VHF+2-061

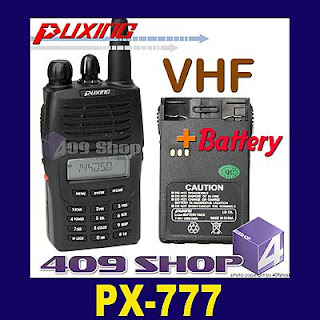

PUXING PX-777 VHF 136Mhz ~174Mhz +Earpiece+Battery
1.VHF
2.136Mhz ~174Mhz 3.VHF 5W output power 4.128 memory channels 5.Built-in 50 CTCSS and 104 DCS 6.Wide (25kHz) and Narrow(12.5kHz) channel spacing programmable in separate channels 7.Come with 1200mAh Li-ion battery 8.Input Frequency directly by keypad 9.VOX built-in 10.Frequency Scan & CTCSS Scan 11.Three different scan type: TO/CO/SE 12.Three color LCD backlight display 13.Sound Alarm 14.Programmable by PC software 16.Priority Scan Function 17.Adjust power High/Low 18.Switching between Channel/VFO 19.Display Channel+ Frequency mode. 20.Adjust squelch level (0-9) 21.Busy channel lockout 22.Keypad lock 23.Reverse Frequency Function 24.Channel step 5k,10k,6.25k,12.5k,25k 25.Program alphanumeric channels name 26.Self-program
TECHNICAL:
Frequency Range 136―174MHz Working Temperate -20℃―+50℃ Operating Voltage DC 7.2V Operate Mode Simplex or Semi-duplex Dimension 100mm×55mm×32mm (Not included Antenna) Weight 220g (Including battery) Antenna impedance 50Ω
Transmitter
Frequency Stability ±2.5PPM Output Power ≦5W Max Frequency Deviation ≦5KHz Audio Distortion ≦3% Modulation Character +3dB—-3dB Adjacent Channel Power ≥65dB Spurious Radiation ≤7.5UW(-36db for CE) Occupied Bandwidth ≤16KHz
Receiver
RF Sensitivity <0.2UV(12DB SINAD) Audio Distortion ≦3% Audio Response +2dB—-10dB Adjacent Channel Selectivity ≥60dB Intermodulation Rejection ≥60dB Blocking ≥80dB
Free for Battery
|
